Reflectivity
970 – 1090 nm · AOI 0° · measured

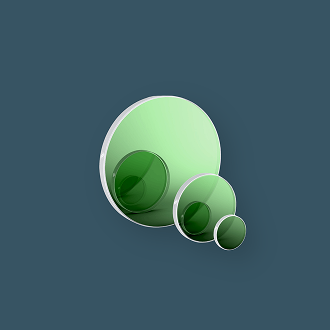

Thin-film polarizers
IBS-coated dielectric multilayers that split s- and p-polarized light with high extinction ratio and next to no loss – s-pol. reflected, p-pol. transmitted, typically at 45° for a clean 90° split between beams, with custom angles available on request. Built to hold high transmittance, high reflectance and outstanding LIDT under extreme power, they stay stable over long lifetimes in Q-switched or ultrafast systems, and work just as well for energy attenuation in high-energy laser setups.
Capabilities
| Coating technology | Ion Beam Sputtering (IBS) |
|---|---|
| Spectral range | 193 – 5000 nm |
| Extinction ration | Up to 10000:1 |
| AOI | 45°, 56°, 72° |
| Substrate diameter | 3 – 500 mm |
| Surface flatness | Up to λ/20 |
| Surface quality | Up to 10-5 S-D over CA (MIL-PRF-13830B) |
| GDD | <20 fs2 |
| LIDT |
> 0.77 J/cm2, 1030 nm, 500 fs, 10 kHz > 2.7 J/cm2, 1030 nm, 10 ps, 10 kHz > 8.9 J/cm2, 532 nm, 10 ns, 100 Hz > 44.96 J/cm2, 1064 nm, 10.5 ns, 20 Hz |
Company-wide capability spans 200–2200 nm
Measured performance
Real data from our metrology lab in Vilnius. Every dataset is viewable as numbers and downloadable.
Filters
Design example:
Graph type:
Group delay dispersion
970 – 1090 nm · AOI 0° · measured
LIDT
Absorption
In-stock at OPTOSHOP
1-3 days delivery from stock, 400+ products available
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-3.0-TFP4526
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-6.35-TFP86
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-3.0-TFP4527
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-3.0-BTFP17
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-3.0-BTFP28
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
SuperHero power
HIGH POWER THIN-FILM POLARIZERS | PP-UVFS-25.4-6.35-TFP95
CAM95-1030-0
| Reflectivity | > 99.95% |
|---|---|
| GDD | < 0.2 fs2 |
| Diameter | Ø 25.4 mm |
Knowledge Hub
Available lenses and substrates
OPTOMAN has a number of plano-concave and plano-convex lenses in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
OPTOMAN has a number of 1/2”, 1”, 2” and 3” plano substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
Let’s get your quotation started.
Our AI assistant will ask the same technical questions our engineers would normally ask by email, so we can understand your requirements from the start and prepare your quotation faster.
Prefer to fill it in yourself?
Send us your requirements directly and our team will get back to you.
- 1 Specifications
- 2 Laser Parameters
- 3 Contact
Thank you
for your request
We will contact you as soon as possible
Related optics
FAQ
How can IBS-coated thin film polarizers benefit my Business?
IBS-coated UV thin film polarizers are ideal for high-power laser applications, such as Yb:YAG and Nd:YAG III & IV harmonics. They provide excellent separation of polarized light, featuring transmittance over 99% and reflectance up to 99.99%, ensuring minimal absorption.
By utilizing the Ion-Beam Sputtering (IBS) technology, our UV polarizers achieve excellent extinction ratios, high Laser-Induced Damage Thresholds (LIDT) and enhanced lifetimes, consequently lowering the total cost of ownership.
Note that a machine is useless if it’s not used properly. The most important component in this equation is the intermediary between the coating design and the IBS machine. That intermediary is the highly skilled and experienced coating engineers that OPTOMAN is proud of.
Is it possible to test the optics and how scalable is the production?
Yes. Based on the customer’s presented business case, OPTOMAN, with its R&D-driven attitude and collaborative approach, can design, develop, and manufacture products for testing purposes and present a plan for serial production. Different-size IBS coating chambers are very handy in this case because small-scale production can be easily transferred to our giant IBS machine – Albert (the atom smasher), where we can coat large optics or 400-500 units of 1“ laser optics in a single coating run, ensuring high uniformity, meaning that all mirrors will work the same making your laser systems highly repeatable and reliable too.
Moreover, our in-stock optics marketplace, OPTOSHOP, features over 400 different laser optics made with love by OPTOMAN. These optics can be provided for testing directly from stock and delivered in 1-3 business days. After successful tests, OPTOMAN can present the most optimal production plan matching your business needs.
How can I be sure that these laser optics will fit my Business needs?
OPTOMAN digs deep into each application, providing highly customized and application-optimized solutions that will fit your business needs.
Together, we will be able to set the priorities that are most important for your application and needs, whether it is reaching fundamental limitations, proving the concept, or making a well-balanced industrial high runner. We keep an open discussion about the main price drivers and help customers optimize BOM costs while maintaining the highest quality level.
Does OPTOMAN provide optics or only coating service?
Both. 80% of total OPTOMAN revenue comes from complete products, while 20% is generated by providing coating services on customer-supplied substrates. OPTOMAN responsibly oversees the supplier network for reliable substrates and, if needed, can offer a completely European supply chain.
Does OPTOMAN have available substrates ready to coat?
Yes. OPTOMAN has a number of flat substrates, plano-concave and plano-convex lenses, and spherical mirror substrates in stock, ready to be coated. Choosing the in-stock substrate option allows, on average, saving 6 weeks of lead time and reducing end-product cost 3 times.
